Sunday, January 25, 2009

Dominion Building Update - Doors, Windows and Roof's oh' my


This little guy is getting so close to being done, but I am having mixed feelings.  On one hand I cant wait to move onto other projects, and then on the other hand I am sad cause I haven't slaved away on one specific thing for so long sense, well, forever.

What I finished off first this week was the doors and entry on the bottom corner of the building.  It was quite simple but I think I pulled it of okay.  First I framed the two doors from .010x.040" strip, and cut a bar from .015" brass wire .  After the glue dried I gave it a once over with a Prismacolor Metallic Silver (PM-117) marker.  I built the box for the entry from some scrap .020" sheet styrene, then painted to match the outside.  On the prototype I noticed there was a cast iron gate that is on the side walls when opened, so I used a section of Gold Medal Models iron fence painted flat black.

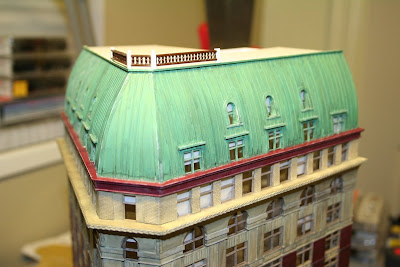

My next task was to finish off the roof, but before I could do that I needed to add the glazing and shades on the top five floors due to the fact the roof would be fixed and I couldn't reach the windows from the bottom very well.  Not much to talk about in this step other than the glazing was cut from .010" acetate and the shades are a light grey card stock.

I was then able to begin work, I cut the sheet of .020" sheet to fit the alloted space and then glued it in.  I than began work on the railing across the cap of the roof.  The balusters are from Plastruct (BLAC-200) and the posts are cut from .080" square strip styrene, and the little ball on top is. . . a. . . its a sprinkle, you know for cupcakes, ice cream and toping off posts.  I then painted the railing to match the grey on the bottom three floors.  The railing on the prototype could only be done by etching metal and I don't yet have the power to do that.

I then built the little mechanical house on top from sheet and strip styrene.  I also did a poor job at making a skylight, I want a few of these so I hope I can make less embarrassing ones soon.  That is the water tower I built a few weeks ago and I will be putting it up, even though there isn't one on the prototype.  My justification for this is that the prototype is in Vancouver, BC and there are mountains there so water pressure is not an issue.  But as my building will be going into a fictional version of NYC, the water tower is justified.  I wont do too much more to the roof because 95% of the rooftops I looked at during this era are quite clean and clutter free, but a little garbage looks good.

I finished most of the glazing and shades on the right side and will finish the left tonight.  There is so very few big things left to do, it down to details now.  Well see what gets done for next Sundays update, I don't even know.






2 comments:

nscale said...

The weathering on the roof is fantastic. What did you use to get the staining in pools like that? Is it an ink/alcohol wash?

Also, I'm amazed at how you work with building, painting and weathering as you go. I always stick with building first, then painting, then weathering. Unless it's a kit with separate pieces, then it's paint, build then weather.

But I've never trusted myself to weather something before I paint the next part.

Sprinkles!

Christopher Brimley said...

Hey don't knock the sprinkles, do you have a better idea! Yes the roof pools are india ink/alcohol, I dabbed it on heavy is parts and then held my brush about two inches above the roof and tapped it to get the smaller random stains.

I know I break tradition by painting and weathering as I go but I do it to see if I am on the right track as aesthetics go. If I screw something up I can fix it at an easier stage. The problem is I sometimes need to touchup areas as I go.
